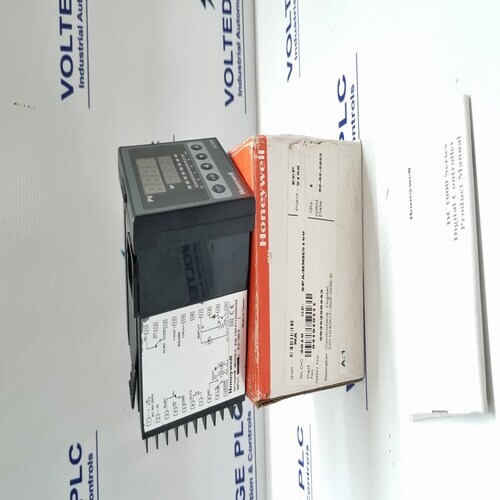

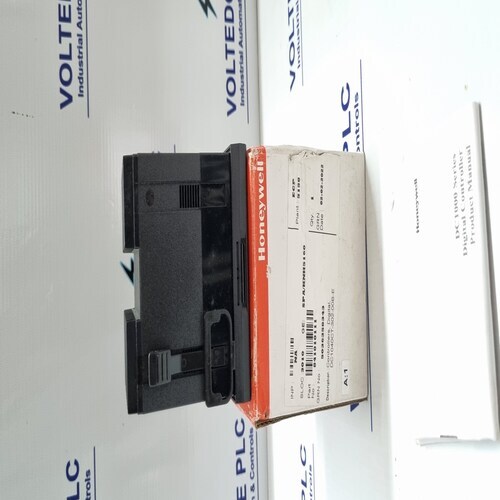

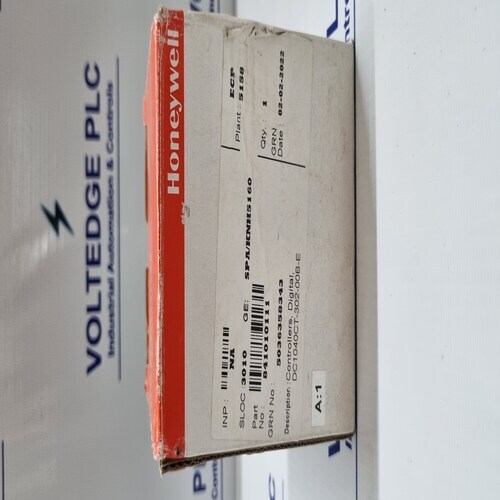

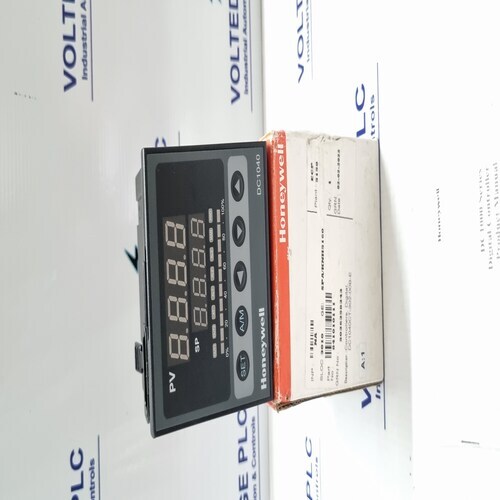

HONEYWELL DC1040 TEMPERATURE CONTROLLER DC1040CT-30200B-E

Product Description

The Honeywell DC1040 Temperature Controller (DC1040CT-302-00B-E) is a highly versatile, industrial-grade temperature control system designed for precise control and monitoring of temperature-sensitive processes in various industrial applications. It is often used in process control systems where temperature regulation is critical, such as in heating, cooling, or thermal processing.

Key Features:

1. Advanced Temperature Control:

   • The DC1040 is engineered to offer precise temperature control for a wide range of industrial processes. It supports advanced control algorithms like PID (Proportional, Integral, Derivative) for fine-tuning temperature regulation.
   • It provides stable and accurate temperature control, which is essential in industries like chemical processing, pharmaceutical manufacturing, food and beverage, and oil and gas.

2. Multi-Input Capabilities:

   • The DC1040 supports a variety of input types, such as RTD (Resistance Temperature Detectors), thermocouples, and voltage or current signals.
   • It allows for the flexibility to work with different types of temperature sensors, making it ideal for installations where the input requirements may vary.

3. Multiple Output Options:

   • This controller supports different output options, including analog outputs and relay outputs, for controlling heating or cooling elements (such as valves, heaters, or coolers). This ensures that it can handle a range of actuation methods for temperature regulation.

4. Digital Display:

   • The DC1040 comes with a digital display, which shows real-time temperature readings, as well as control settings, alarms, and diagnostic information. This feature is essential for monitoring, tuning, and troubleshooting the system.

5. User-Friendly Interface:

   • The device is designed with an intuitive user interface, making it easy for operators to set control parameters, adjust setpoints, and configure alarms. It also includes simple calibration options for ease of use in different applications.

6. PID Control and Optimization:

   • The DC1040 offers PID control, which is customizable for the specific needs of the application. Auto-tuning capabilities are included, allowing the controller to optimize its performance for different heating or cooling processes by adjusting the PID parameters automatically.
   • It can handle advanced process control functions, providing a high level of control and consistency in processes requiring tight temperature regulation.

7. Alarms and Diagnostics:

   • The DC1040 includes alarm functionality, providing alerts for temperature deviations, sensor failures, or other abnormal conditions. This is essential in preventing damage to equipment or products due to temperature fluctuations.
   • Built-in diagnostic tools also help operators troubleshoot issues quickly and ensure smooth system operation.

8. Flexible and Compact Design:

   • The DC1040 is designed with a compact form factor, making it suitable for installations where space is limited. Its modular and flexible design ensures easy integration into existing systems and various control panel configurations.
   • DIN rail mounting is supported, allowing for easy installation in control cabinets or panels.

9. Temperature Range and Accuracy:

   • The DC1040 offers a wide temperature control range, typically spanning from -200C to 1800C, depending on the sensor used. It provides high accuracy and repeatability, crucial for precision applications in industries like materials testing, thermal processing, and laboratories.

10. Applications:

    • Heating Systems: Controls the temperature of heating elements, ensuring a constant temperature in industrial ovens, furnaces, or boilers.
    • Cooling Systems: Manages cooling units to maintain setpoint temperatures in refrigeration or chillers.
    • Manufacturing and Processing: Controls the temperature of products or materials in industries such as plastics, pharmaceuticals, and automotive manufacturing.
    • Laboratory Equipment: Used in research and development labs for precise temperature regulation in experiments or equipment testing.

Typical Use Cases:

• Industrial Ovens and Furnaces: Regulating temperature to ensure uniform heating and consistent processing of materials.
• Chemical Processing: Maintaining a stable temperature to ensure optimal reaction conditions.
• HVAC Systems: Providing accurate temperature control in heating, ventilation, and air conditioning systems.
• Food and Beverage: Ensuring temperature control in food preparation and storage processes, preventing spoilage or contamination.

Summary:

The Honeywell DC1040 Temperature Controller (DC1040CT-302-00B-E) is a highly reliable and accurate temperature control solution, designed to meet the needs of demanding industrial applications. Its advanced PID control, flexibility in input and output options, and user-friendly interface make it an ideal choice for industries that require precise temperature regulation. Whether used for heating, cooling, or process control, the DC1040 ensures operational efficiency, safety, and consistency in temperature-sensitive applications.
