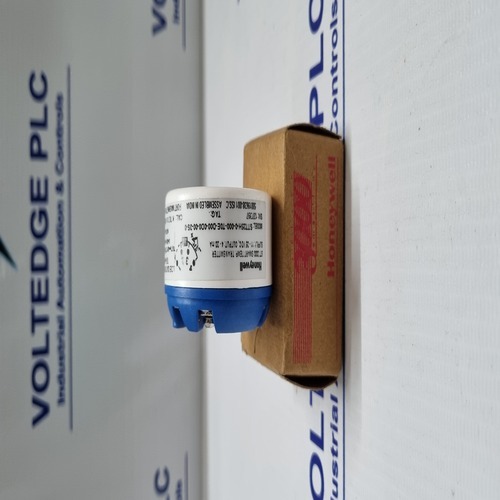

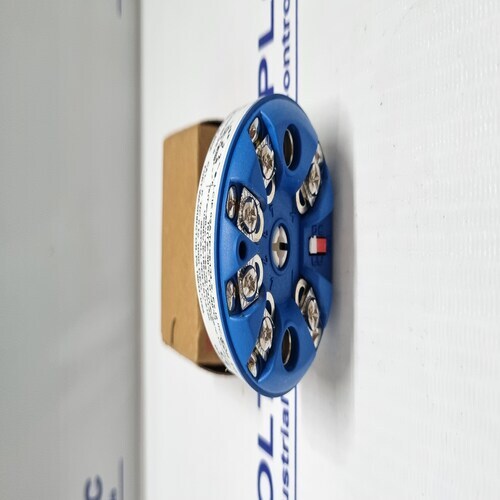

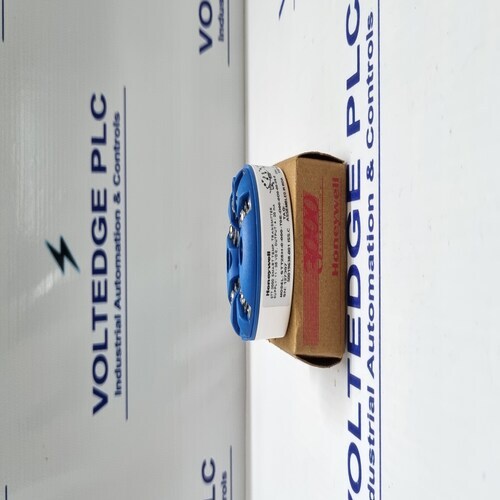

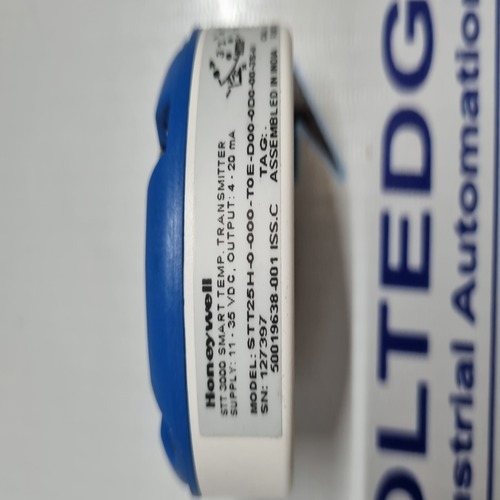

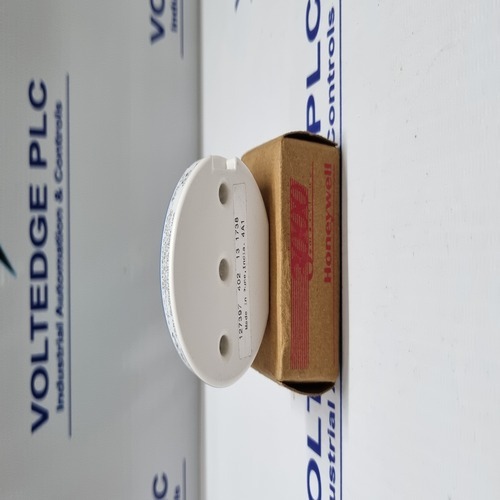

Honeywell STT25H-0-000-T0E-D00-0D0-00-3S-0 Temperature Sensor Transducer

Product Description

The Honeywell STT25H-0-000-T0E-D00-0D0-00-3S-0 Temperature Sensor Transducer is a precise temperature measurement and signal transducer designed to convert temperature data into a standard output signal. It is part of Honeywell's STT25 series, known for its high accuracy, robustness, and versatility in a wide range of industrial applications.

Key Features of the Honeywell STT25H-0-000-T0E-D00-0D0-00-3S-0 Temperature Sensor Transducer:

1. High Accuracy and Stability:

   • The STT25 series provides highly accurate temperature measurement with a typical accuracy of ±0.1C or better, depending on the configuration. This ensures precise and reliable readings in demanding environments.
   • The sensor is built to maintain its performance over time, offering stable output with minimal drift or sensor degradation.

2. Versatile Measurement Range:

   • The STT25 temperature sensor is suitable for use in a wide temperature range, typically from -40C to 125C, depending on the configuration. This makes it suitable for a variety of industrial applications requiring precise temperature control or monitoring.
   • The sensor can be configured to measure temperature in different units (e.g., Celsius, Fahrenheit) depending on the user's requirements.

3. Standardized Output:

   • The STT25H-0-000-T0E-D00-0D0-00-3S-0 model is designed to provide a 4-20 mA output, a common signal type used in industrial automation and control systems. The 4-20 mA current loop signal ensures long-distance signal transmission without loss of data integrity.
   • The output can be linear with respect to the temperature range, allowing for easy integration with monitoring systems.

4. Robust and Reliable Design:

   • The STT25 temperature sensor transducer is designed for harsh industrial environments. It is built with a stainless steel housing and is resistant to physical damage, corrosion, and environmental stress.
   • The sensor is rated for high vibration and shock resistance, making it suitable for use in industrial processes that involve heavy machinery or moving parts.

5. Easy Integration:

   • The STT25 sensor is designed for easy integration into process control systems and automation networks. It features standard electrical connections, such as mating connectors, making installation straightforward and reducing setup time.
   • It is compatible with Honeywell's broader range of control and monitoring equipment, providing seamless integration into existing systems.

6. Wide Application Versatility:

   • The STT25H-0-000-T0E-D00-0D0-00-3S-0 temperature sensor transducer is used in a variety of industries for precise temperature measurement. Common applications include:
     • Oil & Gas: Monitoring temperatures in pipelines, wells, and processing equipment.
     • Chemical Processing: Ensuring temperature regulation in reactors, mixing tanks, and other critical processes.
     • HVAC: Temperature monitoring in heating, ventilation, and air conditioning systems.
     • Power Generation: Ensuring proper temperature regulation in turbines, boilers, and other equipment.
     • Food & Beverage: Maintaining temperature control during food processing and storage.

7. Environmental and Operational Flexibility:

   • The STT25 temperature sensor is rated for operation in extreme conditions, from extremely low temperatures to high-temperature environments. This makes it suitable for use in cold storage, refrigeration, and high-heat processes.
   • It is also designed to function effectively in environments with high humidity or dust.

8. Advanced Diagnostics:

   • The STT25 series includes diagnostic features that help detect sensor faults or deviations in performance. This enables predictive maintenance and reduces the likelihood of system failure.
   • The sensor provides diagnostic information to assist in identifying wiring issues, faults, or sensor drift, helping prevent unexpected downtime.

Model Breakdown:

The STT25H-0-000-T0E-D00-0D0-00-3S-0 model number can be broken down as follows:

• STT25H: Indicates the sensor model and specific version. "H" might represent a specific housing or environmental configuration.
• 0-000: Could refer to the type of configuration, such as output signal range or sensor type.
• T0E: Refers to specific temperature ranges or calibration settings.
• D00-0D0-00: Likely indicates physical characteristics, such as housing material or sensor calibration specifics.
• 3S: Could refer to a specific feature or certification type.
• 0: Likely a revision or version code.

Summary:

The Honeywell STT25H-0-000-T0E-D00-0D0-00-3S-0 Temperature Sensor Transducer is an industrial-grade temperature sensor offering high accuracy, reliable performance, and wide temperature measurement capabilities. Designed for use in harsh environments, it is widely used in industries such as oil & gas, chemical processing, HVAC, and power generation. Its robust construction, 4-20 mA output, and advanced diagnostic capabilities make it ideal for critical temperature monitoring and control applications in demanding environments.
